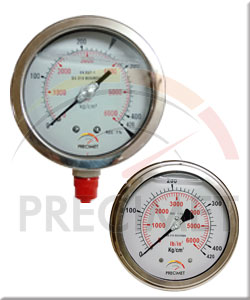

All SS: Filled/Fillable, Heavy Duty Gauges:
These gauges are used where pressure gauges are subjected to harsh and corrosive conditions where pulsation or vibration exists. The filled liquid protects the internal parts against vibrations. Intended to use for gaseous or liquid media that will not obstruct pressure system. Typical applications include Oil patch, Refineries, Oil rigs, Control panels, Offshore platforms, Marine and General Industrial.
Size Availability: 4", 6" (100mm, 150mm)
Mounting: Bottom Direct, Surface Mounting, Back (LBM), Back Panel, Back Bracket

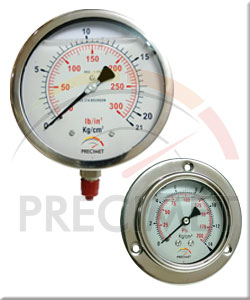

All SS: Filled/Fillable, Economy Gauges:
These gauges are used where pressure gauges are subjected to severe conditions where pulsation or vibration exists. The filled liquid protects the internal parts against vibrations. Intended to use for gaseous or liquid media that will not obstruct pressure system
Size Availability: 2.5", 4" (63mm, 100mm)
Mounting: Bottom Direct, Surface Mounting, Back (LBM), Back Panel, Back Bracket

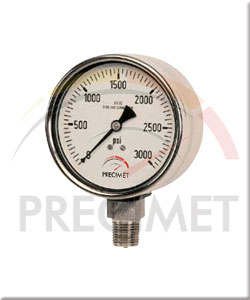

All SS: Solid Front / Safety Version Gauges:
Used in Process industry: chemical / petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction. The filled liquid protects the internal parts against vibrations. Suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system
Size Availability: 4", 6" (100mm, 150mm)
Mounting: Bottom Direct

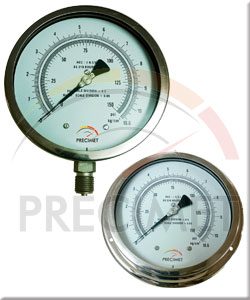

All SS: Test Gauges:
These gauges are used in Laboratories and Industries by Inspecting authorities, for pressure gauge testing and callibration
Size Availability: 6", 8" (150mm, 200mm)
Mounting: Bottom Direct, Surface Mounting, Back (LBM), Back Panel, Back Bracket

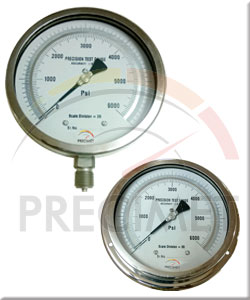

All SS: Precision Test Gauges:
These gauges are used in Laboratories and Industries by Inspecting authorities, for pressure gauge testing and callibration
Size Availability: 6", 8", 10" (150mm, 200mm, 250mm)
Mounting: Bottom Direct, Surface Mounting, Back (LBM), Back Panel, Back Bracket

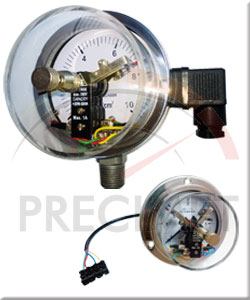

Contact Gauges:
Contact Gauges are ideal in the applications which demands measurement and control of pressure by switching electrical contacts ON and OFF. This eliminates the need of separate switches for pumps and motors which gives audio or visual alarms. The small adjustable magnet mounted in the contact assembly, attracts the contact arm just before the set pressure value which prevent the common problem of arcing and burning of contact pins.
Size Availability: 4", 6" (100mm, 150mm)
Mounting: Bottom Direct, Surface Mounting, Back (LBM), Back Panel, Back Bracket

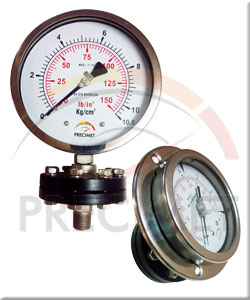

Diaphragm Sealed Gauges:
Diaphragm sealed gauges are traditionally used when a standard measuring instrument should not be exposed to the process pressure directly, like viscous, corrosive gases and liquid media in corrosive environment. Diaphragm Sealed gauges typically protect the measuring instruments from one or more damaging aspects of the process media.
Size Availability: 4", 4.5", 6", 10" (100mm, 115mm, 150mm, 250mm)
Mounting: Bottom Direct, Surface Mounting, Back (LBM), Back Panel, Back Bracket, with Capillary, with Flange

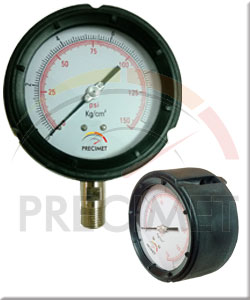

Process Gauges:
Gauge with Heavy Duty construction and superior performance against tough and corrosive applications in industries, process, power, nuclear and cryogenics. Thermoplastic (PBTP 20%) gives longer life to the pressure gauge under adverse operating conditions.
Size Availability: 4.5" (115mm)
Mounting: Bottom Surface Mounting, Back (LBM),

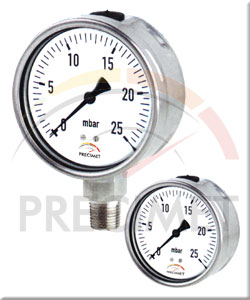

Capsule Gauges:
These gauges are suitable for dry and gaseous media that will not react with copper alloy parts
Size Availability: 3", 4", 6" (63mm, 100mm, 150mm)
Mounting: Bottom Direct, Surface Mounting, Back (CBM), Back Panel, Back Bracket
